10s3p P42A Battery Pack | Transparent Series
Introducing the MBoards 10s3p P42A Complete Battery Solution. This battery is a 10s3p lithium-ion battery made from 30 Grade-A 21700 Molicel P42A cells with a modular BMS (Battery Management System) that protects the battery pack and keeps it running safely when operating and charging. If you’re looking to build a fast board, 10s batteries are the way to go.
We've finally brought battery pack assembly back under the MBoards roof. We've got more control than ever before. Now assembled here in Las Vegas, NV - USA.
The MBoards 10s3p P42A pack truly packs a punch delivering 135 amps.
Flexibility = Durability
Our Transparent Series batteries are made with flexible decks in mind. Each series connection is made with premium 12awg silicon wire to ensure the battery remains flexible and can handle high current.

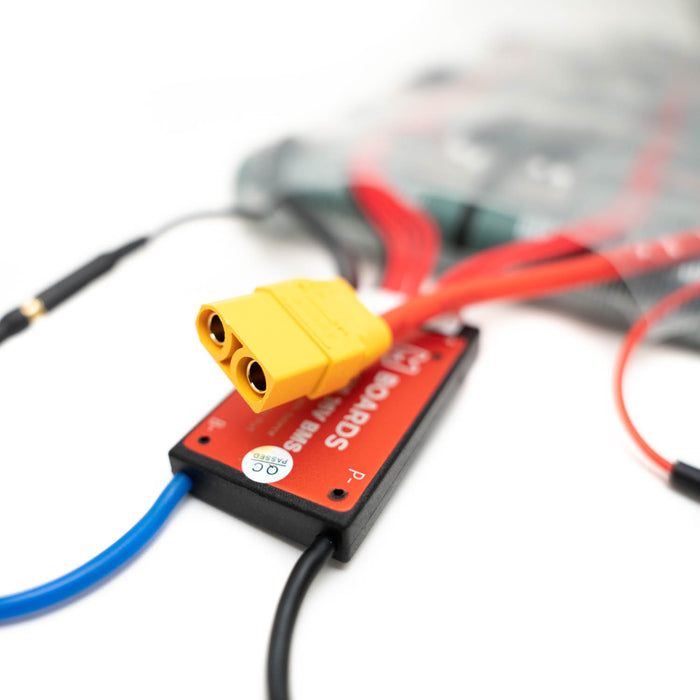

Unlike our old batteries, our Transparent Series features an external and modular BMS. That means if your BMS ever has an issue, you can simply unplug it and plug in a new one. No need to rip the pack apart and cut a bunch of wires. Replace the BMS with ease. No soldering, no hassle.
The MBoards Transparent Series batteries are all BMS bypassed for discharged. That means you have access to the full potential of the battery cells with out the bottleneck of a BMS.
- 1 x MBoards 10s3p P42A Complete Battery Solution
- 1 x Modular BMS (Battery Management System)
- 1 x 2.1mm Charge Port
- 1 x 42V 2A Charger
Range: 25-30+ Miles (40-48+ Km)
Top Speed: 30+Mph (48+ Kmh)
Nominal Voltage: 36V
Capacity: 12600mAh | 454Wh
Cells: Molicel P42A 21700
Connection: XT90 Female connector
Max Discharge: 135a
Approximate Battery Dimensions:
Length: 13.5" (345mm)
Width: 5.7" (146mm)
Thick: 1" (25.4mm)
*BMS is not counted in approximate dimensions, as many builders stack the BMS on-top of the ESC to save space.
Everything is plug and play, no soldering required. A 10s charger is also included with your purchase of the battery. The charger is formatted for North America (USA & Canada) but will also work with other countries with a power adaptor (not included).
