BLDC ESC V4 Compatible with VESC® Tool*
*** WE ARE CURRENTLY SWITCHING MANUFACTURERS. EXACT SPECS MAY DIFFER. *** Shipping Updates to Follow
Now Ships with Pre-Soldered XT60 Connector.
The BLDC ESC is based upon the Hardware V4 VESC® Open Source Project, and compatible with VESC® Software.
The BLDC ESC V4 is a highly modifiable electronic speed controller designed for DIY Electric Skateboards conversions in mind.
The BLDC ESC V4 allows you to use sensorless motors to achieve smooth start-up from a stop, while traditional RC ESC's may have trouble starting. It also provides strong reliable and progressive electric braking.

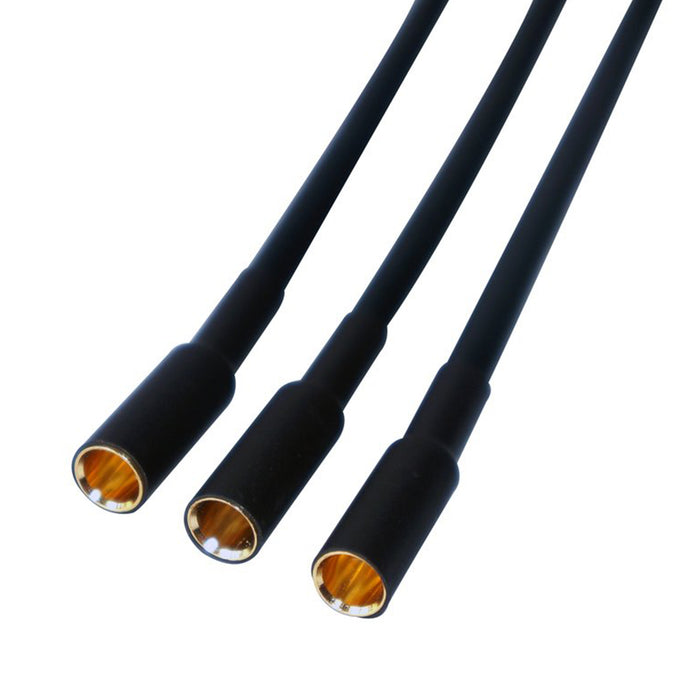

Comes with pre-soldered 4mm bullet connectors. (Compatible with all MBoards Motors).
Capable of BLDC and FOC mode.
Customizable settings with VESC® Tool.
This hardware 4 ESC is based on a beta technology and requires special care and set up.
◆ Hardware: V4
◆ PCB:4 layers, size: 40*60mm
◆ Current: 50A continuous / 240A peak
◆ Voltage: 8V-60V (Cells: 3s-12s)
◆ BEC: 5V@1.5A
◆ BEC type: Internal driver support
◆ Timing: Software calibration
◆ Motor control interface: PPM signal (RC servo), analog, UART, I2C,
USB or CAN‐bus.
◆ Cutoff Voltage: Programmable
◆ Frequency: PWM input
◆ Governor: No
◆ Weight: 80g
◆ BLDC ESC V6 Size: 60x40x20mm
◆ Programming card: No
◆ Reverse: Yes
What's In the Box?(1) BLDC ESC 4
(1) USB-C Cable
(1) PPM cable soldered on board
*VESC is a registered trademark owned by Benjamin Vedder.
VESC Hardware by Benjamin Vedder is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
For more Information and to download the PC software please visit (http://vedder.se/2015/01/vesc-open-source-es-c/) .

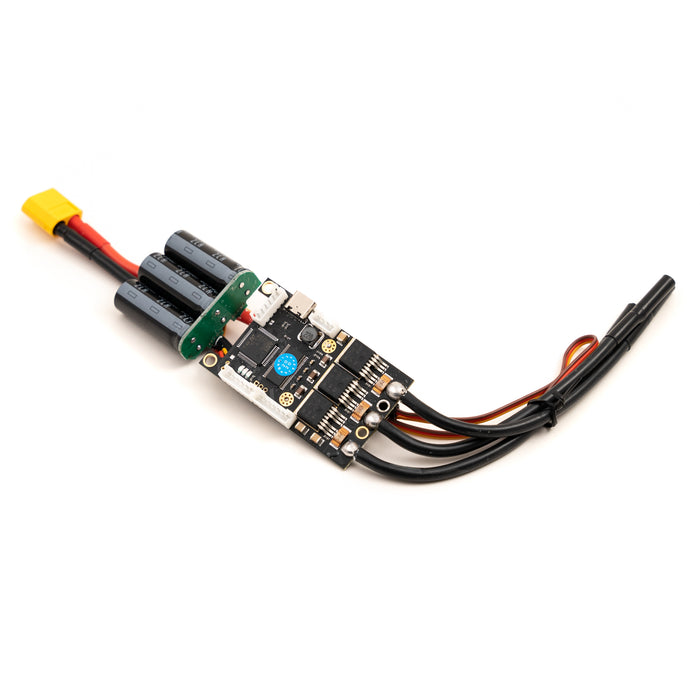

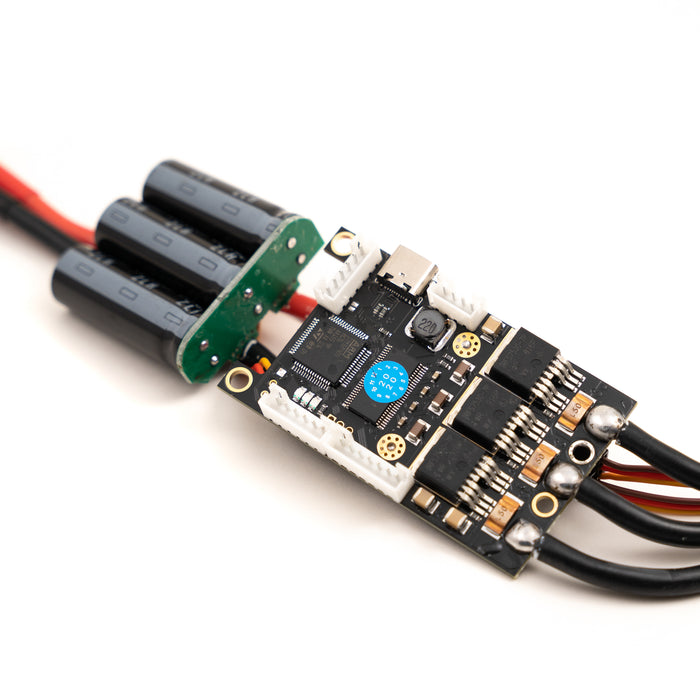

Vesc 6 Pictured, due to chip shortages we are only able to get V4 Vescs at the moment.
