Hoyt St 6361 Burnside Motor

Hoyt St 6361 Burnside Motor

Sale
$325.00
$199.99
SKU

INDUSTRY LEADING PERFORMANCE: Magnetic field simulation and years of field testing utilized to optimize power-output efficiency and torque-curves for single-rotor specific applications. The new XF Generation 3 Brushless Motor Series produce industry-leading performance and are built to the highest-quality standards and manufacturing technologies available; including proprietary techniques never before introduced.  All XF Gen3 versions are high-grade, Japanese brand quad-bearing supported for exceptional durability and vibration-free, smooth operation.

OPTIMIZED STATOR CONSTRUCTION: Stator construction uses the highest-grade, 0.2 mm silicon steel laminations and military-spec, Polyimide ultra-high temperature (240°C/464°F) windings for optimum efficiency and power transfer. Permanent bond to the stator is achieved with a Kevlar-tie wrap around all stator teeth and vacuum-pulled epoxy coating to reduce chance of winding failures.

MAGNET BELL CONSTRUCTION: All XF Gen3 Series motors use true-grade, ultra-high temperature rated N45UH Neodymium sintered-magnets (10- Pole, 85% magnetic surface coverage) for industry-leading performance. An upper CNC-machined magnet retaining ring, dedicated slots, and 360° epoxy bonds are incorporated at each magnet location to secure a permanent connection to the motor housing for unparalleled, failure-free operation.

HIGH VOLUME CENTRIFUGAL FAN: The XF Gen3 Fan design is further optimized for high-volume airflow at minimal amperage-draw; providing a cool-running, 3D competition-ready motor, even under the hardest and most demanding riding styles and weather conditions.

SILICON WIRE POWERED LEADS:  High-temperature (200°C/392°F), silicon-wire power leads come pre-soldered with 24K male bullet connectors and rubber exit-wire gasket protection for easy installation.

=========================================

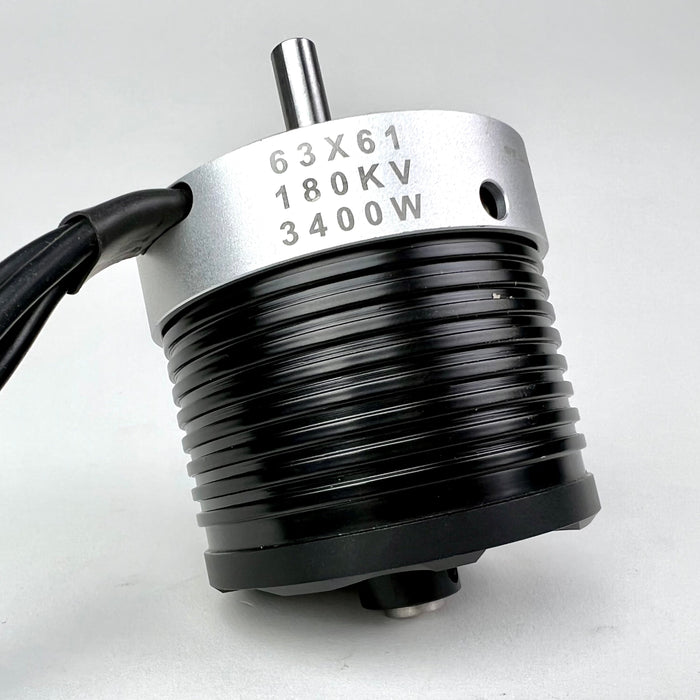

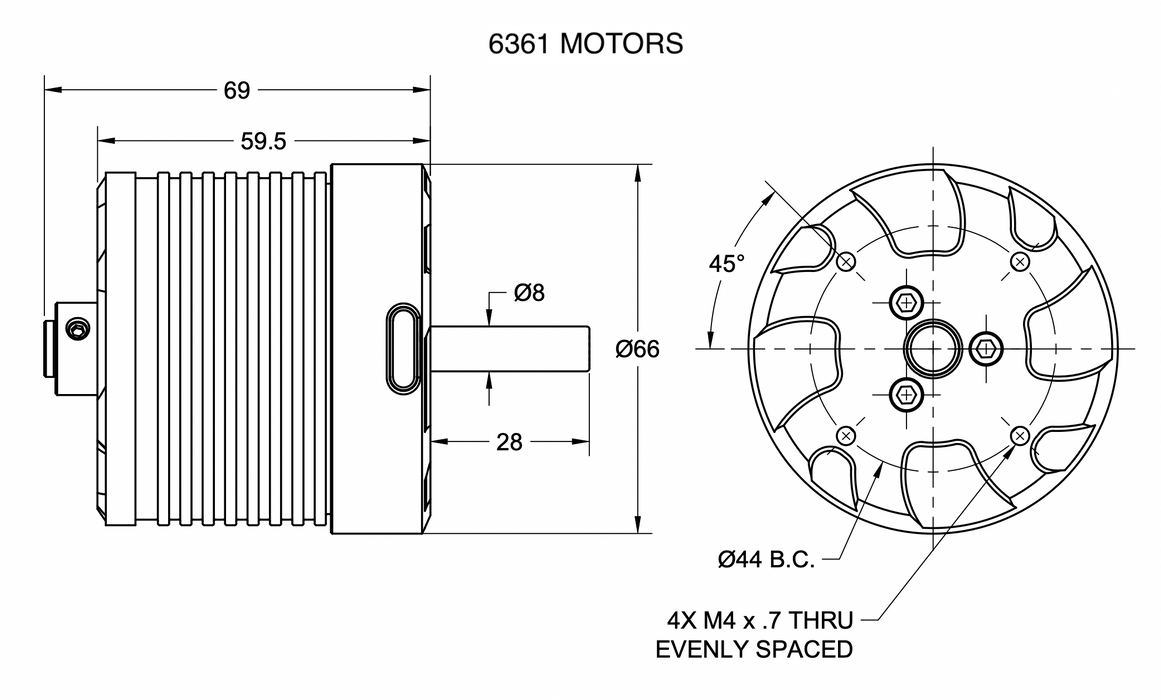

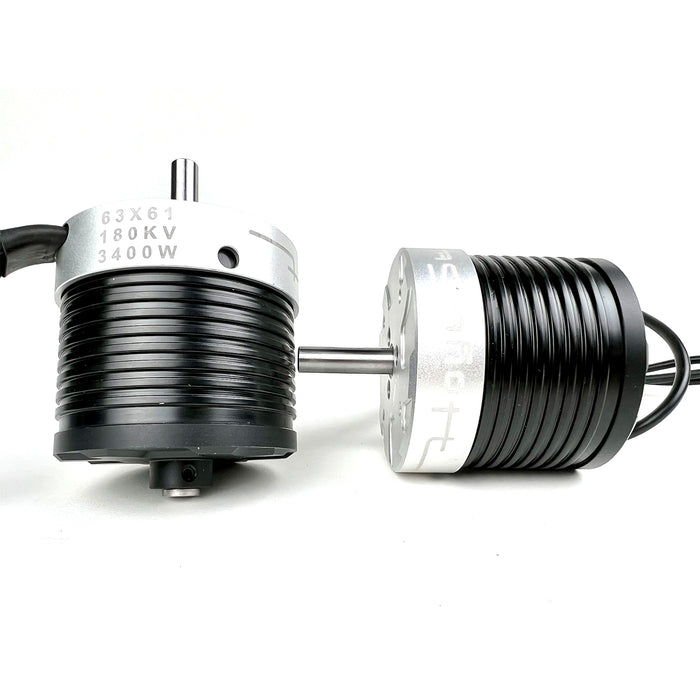

6361s:  Military Grade Brushless Motor with Hall Sensor, designed and engineering in Oregon, USA:  63x61mm, 750g.

Max Continuous Power: 3400W
Max Continuous Current: 68A
Rated Voltage:  50.4V (12S)
Kv: 180
Shaft Diameter: 8mm
Stall Torque: 3Nm
Max RPM: 7600 RPM
Hall-effect sensored
Bearings:  2x dual-stacked bearings with permanently bonded and internally sealed oversized bearings ensuring long life and smooth operation.
Windings:  vacuum pulled double epoxy dip polyimide ultra-high temp ensuring electrical insulation and vibration resistance.
Stators lamination:  high grade Japanese 0.2mm stamped silicone steel plates.
Max temperature: 180ºC
Magnets: N45UH Neodymium sintered.
Minimal Magnetic Flux Loss:  majority of the magnetic field contained within the motor enabling maximum rotor:stator interaction, meaning the magnetic field is spent propelling you forward, not lost outside the can picking up metal shavings.

SOLD INDIVIDUALLY

*While this part is being sold as new and in working order, this part is being sold as a part of the remaining Hoyt/Metro Board Stock. Sold as is, No Returns.*
