12s 50.4V BMS

$29.99

Very small and reliable BMS for your DIY Battery Pack Builds.

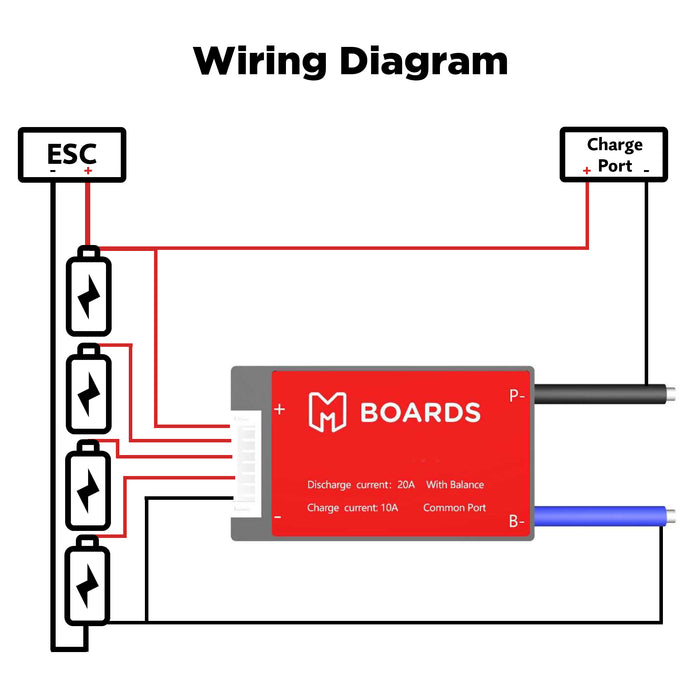

These BMSs are meant to be used for Charging only. You'll want to bypass discharge with these particular BMSs.

Dimensions:
BMS: 63mm*50mm*11mm (2.48in*1.96in*.43in)
P- & B- Cables: 14awg / 125mm (5in)
Balance Cables: 24awg / 450mm (18in)
Weight: 56g

Specs:
Discharge Current: 20a
Charge Current: 10a
Charge Voltage: 42v
Over Charge Voltage: 4.25±0.05
Over Charge Volt Release: 4.15±0.05
