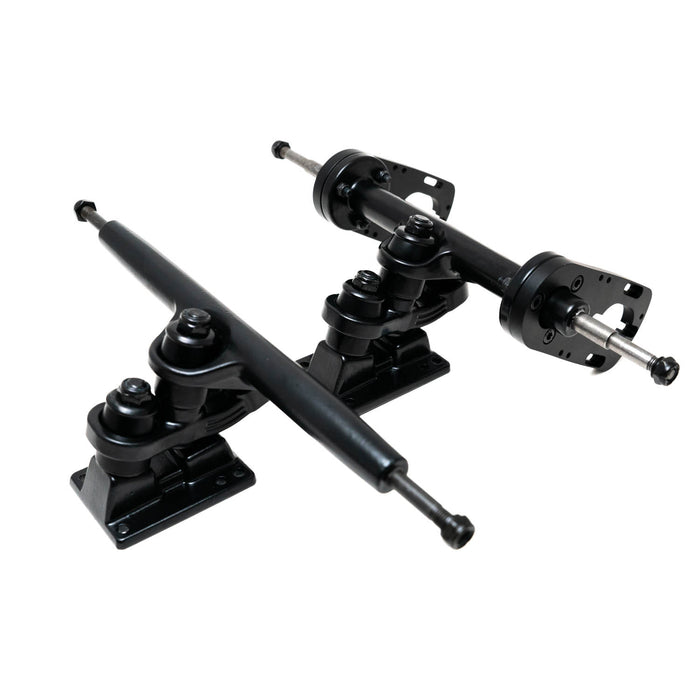

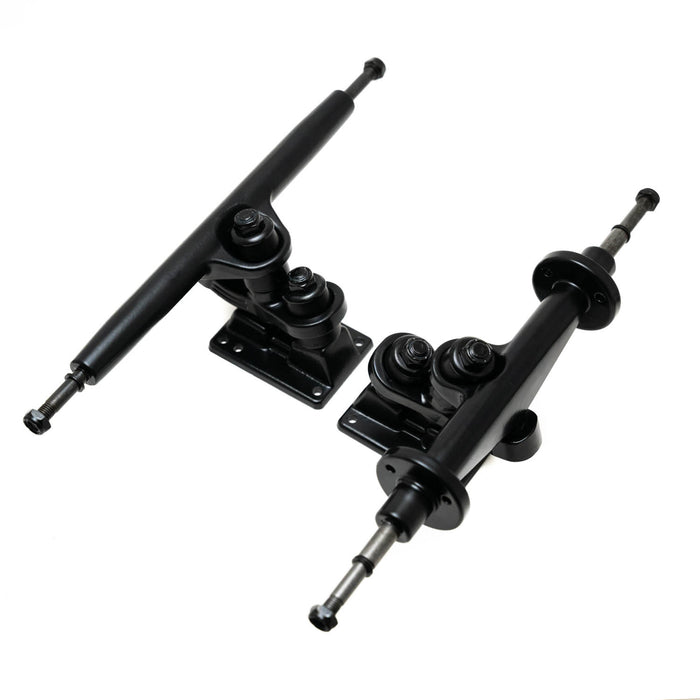

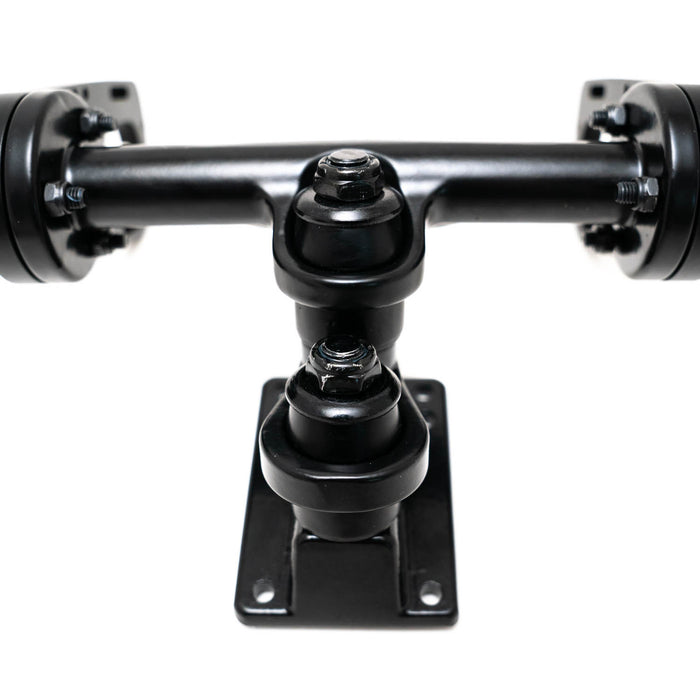

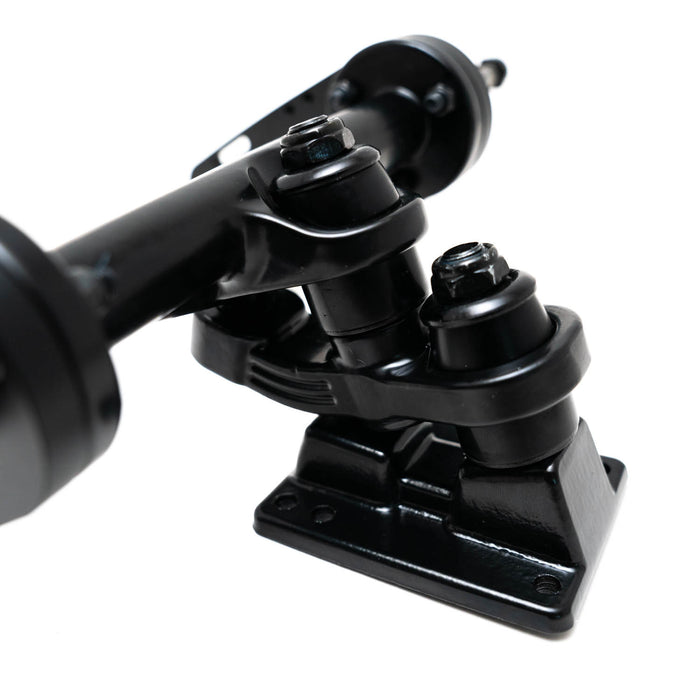

Double Kingpin Reverse Fixed Mount Trucks
Reverse Mount Double King Pin Trucks.
Compatible with Evolve Pulleys and Motor Mounts.
The fixed mounts are reverse mounted and cannot be mounted underneath the board.
Recommended to be used with Board Bumpers or Evolve Pulleys. Otherwise, you may need to use washers to properly space out other pulleys.
(1) Front Truck
(1) Rear Truck
(6) M5 Bolts
(6) M5 Nuts
(2) Motor Mounts
(8) M4x10mm Bolts

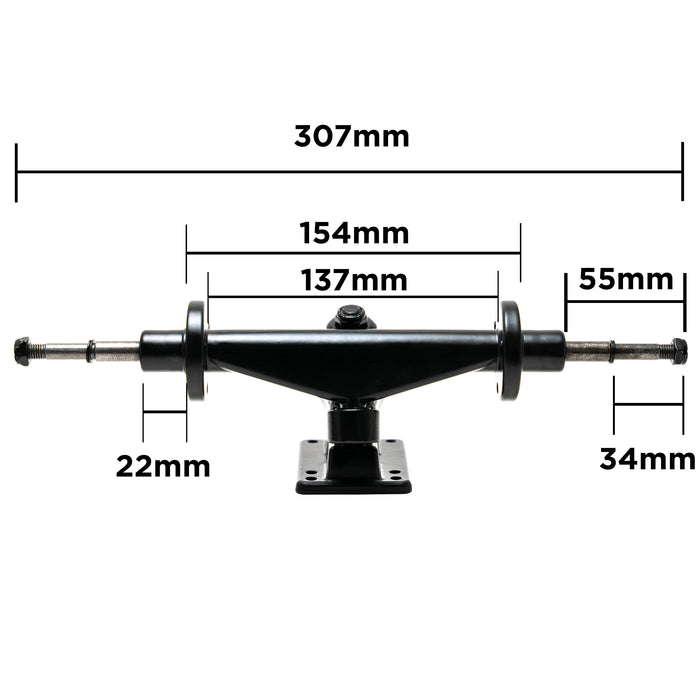

Total Length: 12" | 307mmmm
Axle Diameter: (8mm Front/Rear Wheel - 10mm Rear Wheel Pulley)
Front Axle Space: 35mm
Rear Axle Space: 55mm
Front Hanger Length: 9.25" | 235mm
Motor Compatibility: 63mm Motors
Max Motor Size: 6374

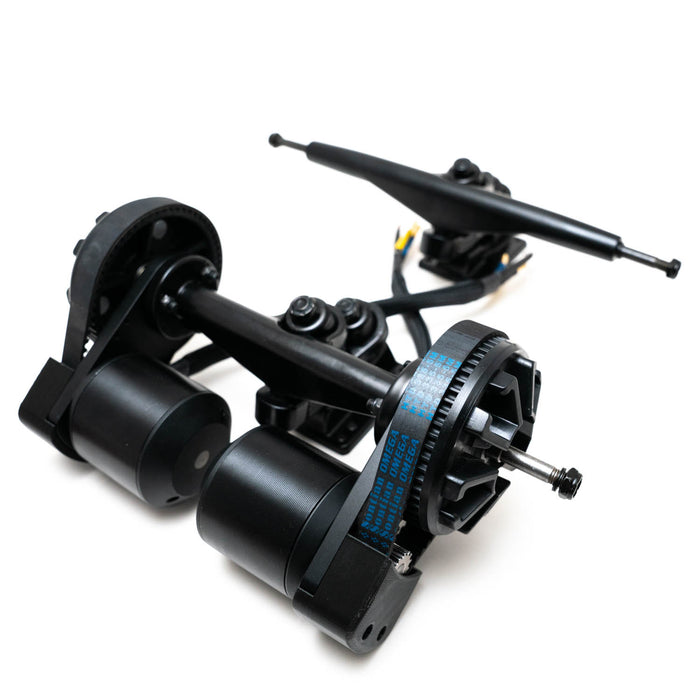

**Motors, Pulleys, Gear Covers, Belts NOT included, shown for illustrative purposes**
Belt Buying Guide
15T / 23T - 240mm
15T / 29T - 250mm
15T 36T - 270mm
15T / 58T - 335mm
15T / 66T - 360mm
