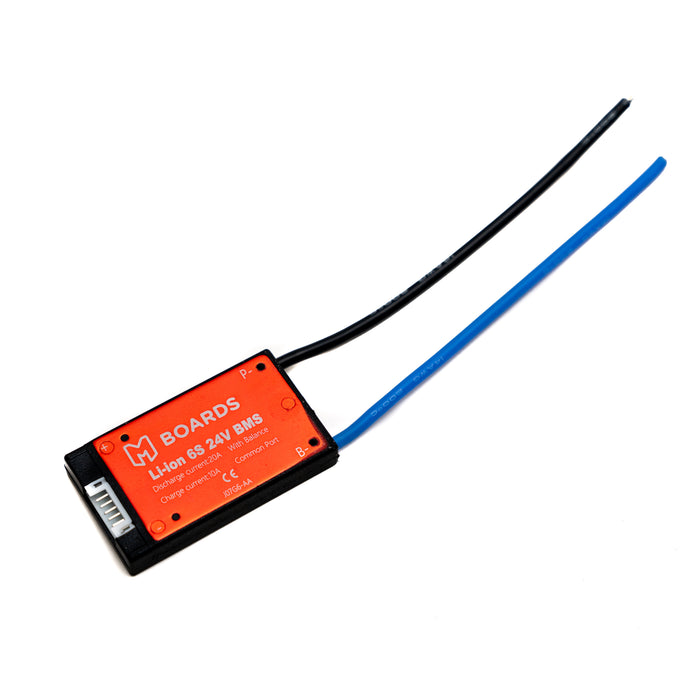

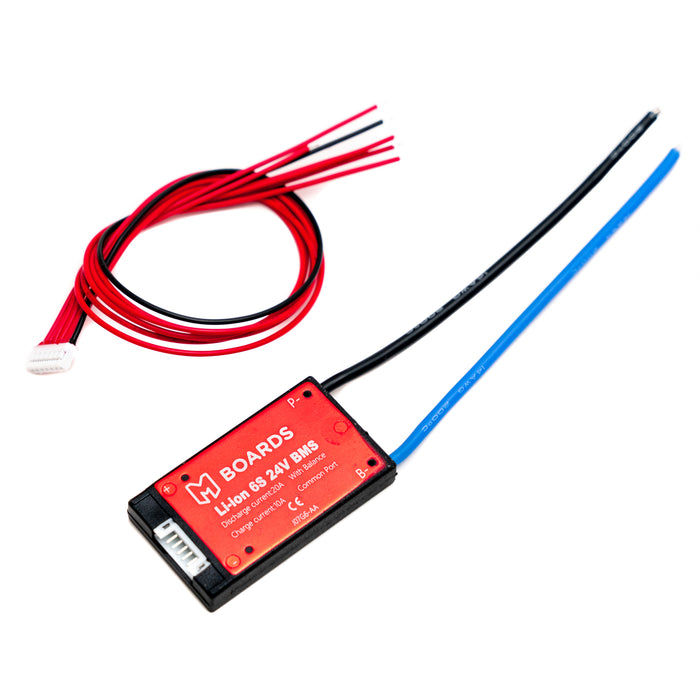

6s 25.2V BMS


Very small and reliable BMS for your DIY Battery Pack Builds.

These BMSs are meant to be used for Charging only. You'll want to bypass discharge with these particular BMSs.

BMS: 60mm*35mm*9mm (2.35in*1.35in*.35in)
P- & B- Cables: 14awg / 125mm (5in)
Balance Cables: 24awg / 300mm (12in)
Weight: 34g

Discharge Current: 20a
Charge Current: 10a
Charge Voltage: 25.2v
Over Charge Voltage: 4.25±0.05
Over Charge Volt Release: 4.15±0.05
