MakerX | MBoards D100s + Bluetooth Module

Sold out
$329.99

Transparent Pricing:
Maker X D100s ($305, after OEM shipping costs)

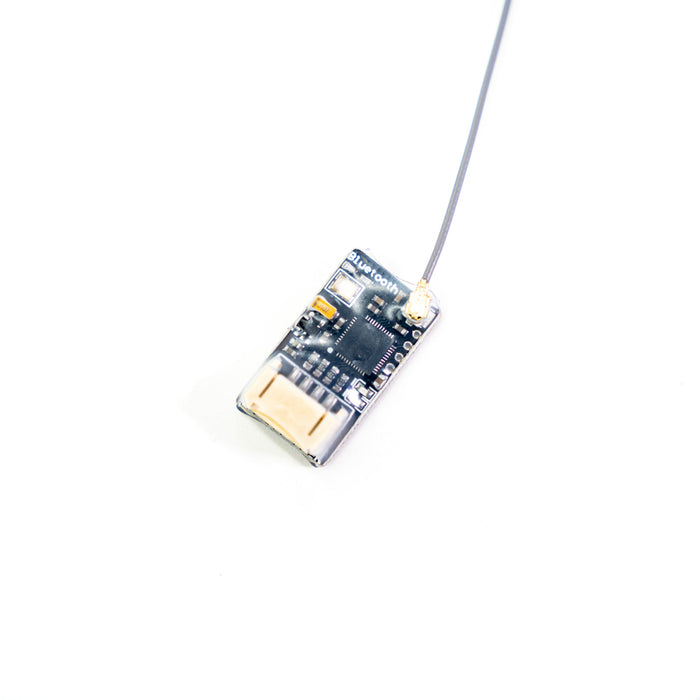

Bluetooth Module ($25)
TOTAL: $329.99

*NO NEED TO UPDATE FIRMWARE, 5.0.3 HAS PROVEN TO BE STABLE. IF YOU MUST UPDATE, CLICK HERE TO DOWNLOAD CUSTOM FIRMWARE. DO NOT UPDATE USING DEFAULT VESC FIRMWARE*

Specs

Voltage: 12-96v(4s-21s)
Motor Current: 100a Cont. 200a Max (Each Side)
Battery Current: 60a Cont. 100a Max (Each Side)
Hardware: Based on VESC 100250

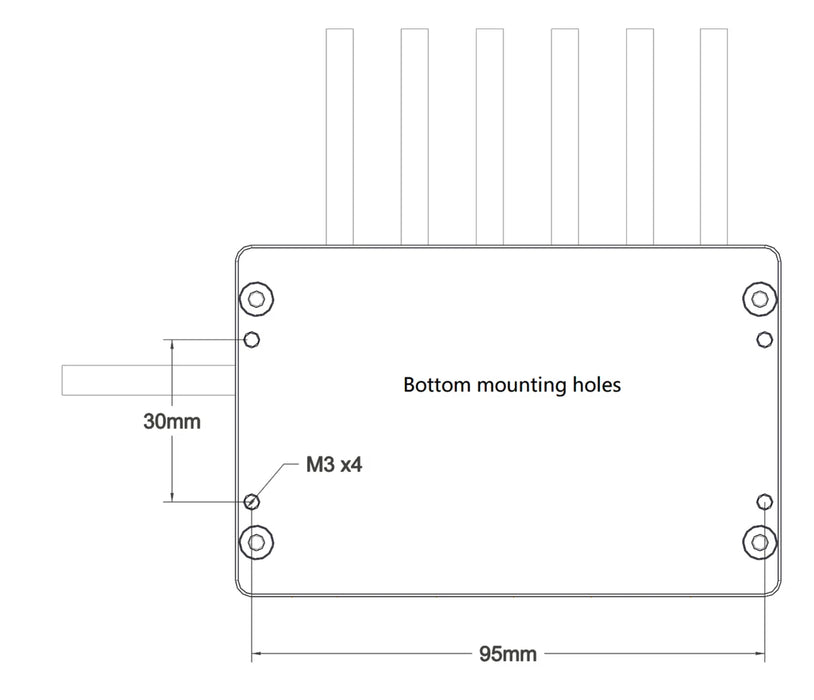

Dimensions: 101*65*20mm
Weight: 330g

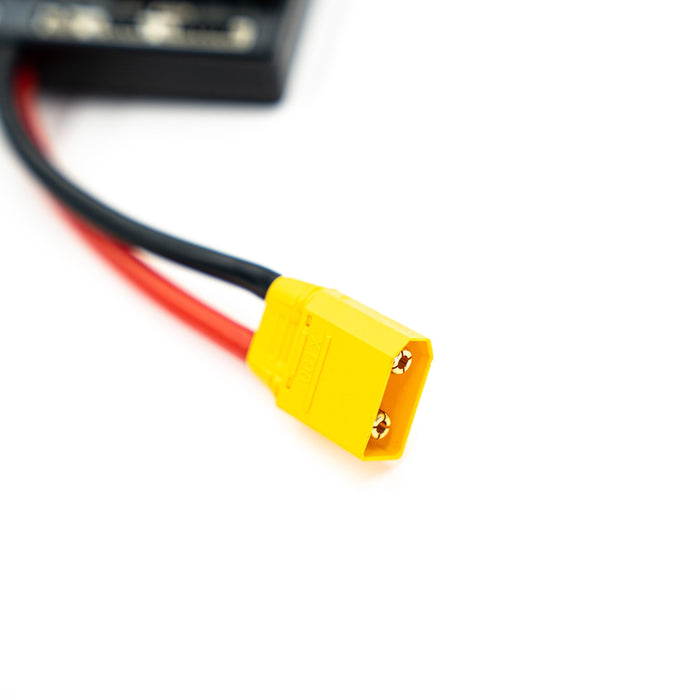

Power Connector: Male XT90

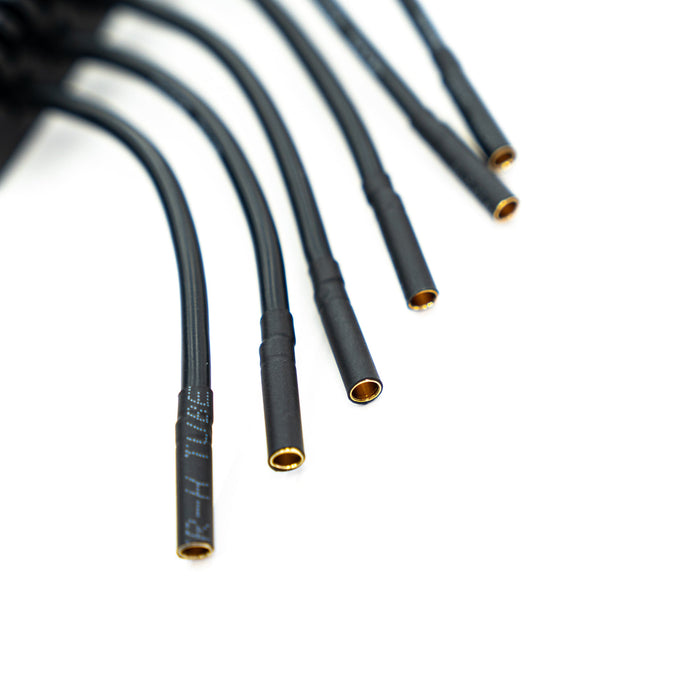

Motor Connectors: 4mm Bullet Connectors

What's Included:

(1) Go-FOC D100s
(1) Female XT90
(6) Male 4mm Bullet Connectors
PH2.0MM JST wires
GH1.25 JST
(1) Micro USB cable
(1) Power Switch (16mm Diameter)
