Stormcore 60D+

$329.99

MORE ON THE WAY! SHIPS MID-OCTOBER



Quick Specs:

Power Connector: Male XT90
Phase Wire Connectors:
Female 4mm Bullet
Hall Sensor Wire Connectors:
6 Pin JST PH 2.0mm

Max Voltage: 50.4v (12s)
Max Motor Amps: 100a Per Motor

Power Button Diameter: 16mm

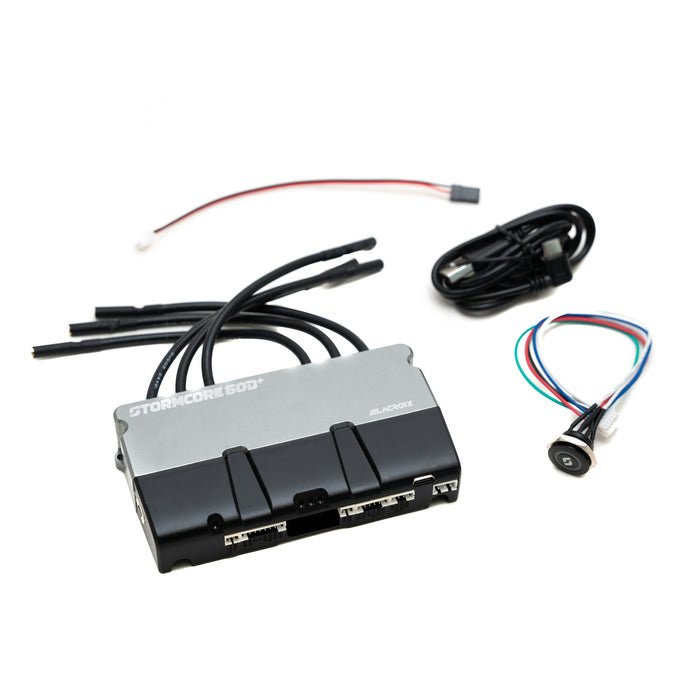

What's In The Box?
(1) Stormcore 60D+
(1) PPM Cable
(1) RGB Power Switch

***********************

OFFICIAL SETTING RECOMMENDATIONS FROM LACROIX:

These are the settings per motor, i.e. per side;
Motor Control type FOC
Motor Max 75a
Motor Min -70a
Absolute Max Current 200a
Battery Max 65a
Battery Min -20a
Voltage Cutoffs 60D+ (12S max)
40.5v Soft , 36.5v Hard
Motor Temp Cutoff Start 110c
Motor Temp Cutoff End 120c



***********************



Stormcore 60D+

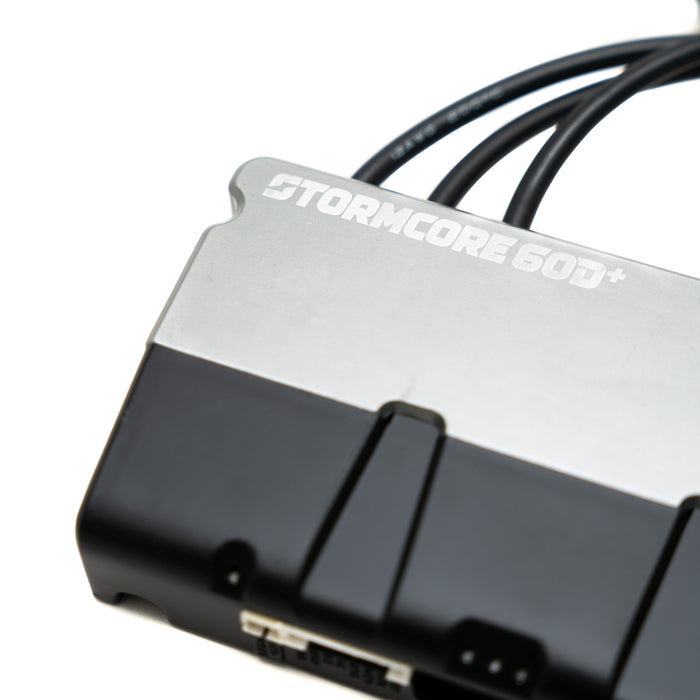

Developed for dual drive electric skateboards, the Stormcore is among the most advanced and polished motor controllers available. It can control two independent brushless motors efficiently and asynchronously, delivering power as needed to propel you into adventure. Featuring an anodized CNC aluminum case, it is built sturdy to offer maximum durability and thermal performance. The rear portion of the case is a plastic composite to allow clean RF reception for the internal bluetooth module so you can connect to your board remotely for logging stats and tuning performance for advanced users.



Operating Conditions

The recommended maximum operating voltage is 50.4V (12s). Sustained motor current will vary by application and environment but our testing has shown excellent thermal performance at settings up to 100 max motor amps per motor and the controller is capable of sustaining 80 motor amps for a period of several minutes without external cooling.



Internal Power Switch

An included switch with RGB LED controls an internal anti-spark switch to safely toggle power of your system. The internal anti-spark was designed for maximum reliability and longevity and testing has shown it to be extremely robust. When configured the switch also displays the current battery level of the board as a color output on a continuous gradient from red-blue-green for 0-50-100% battery remaining.

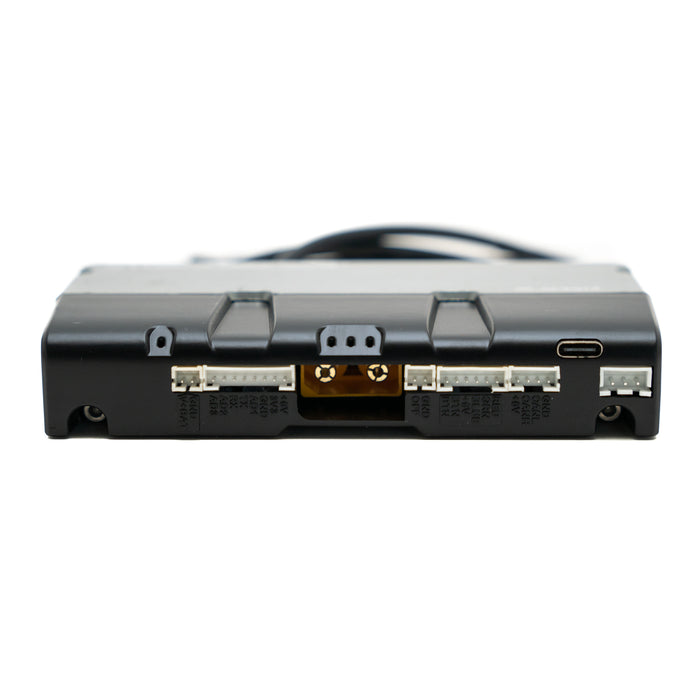

Interface Ports

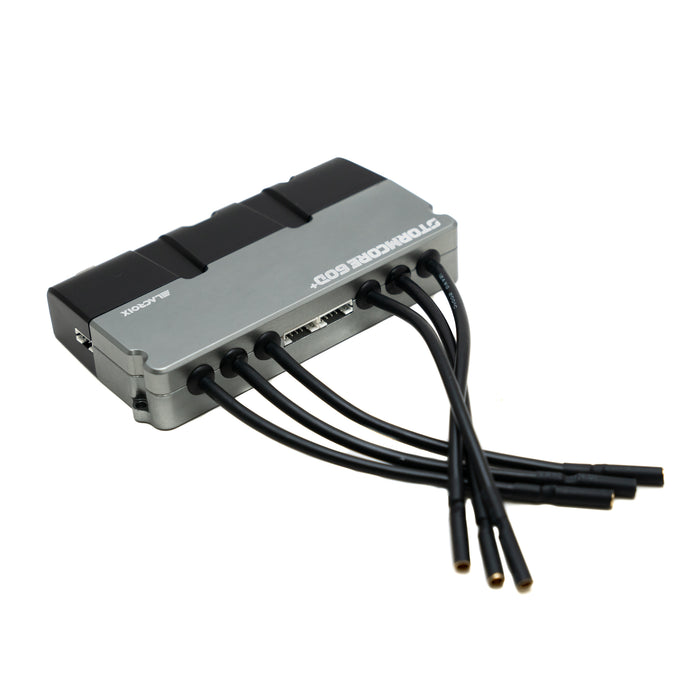

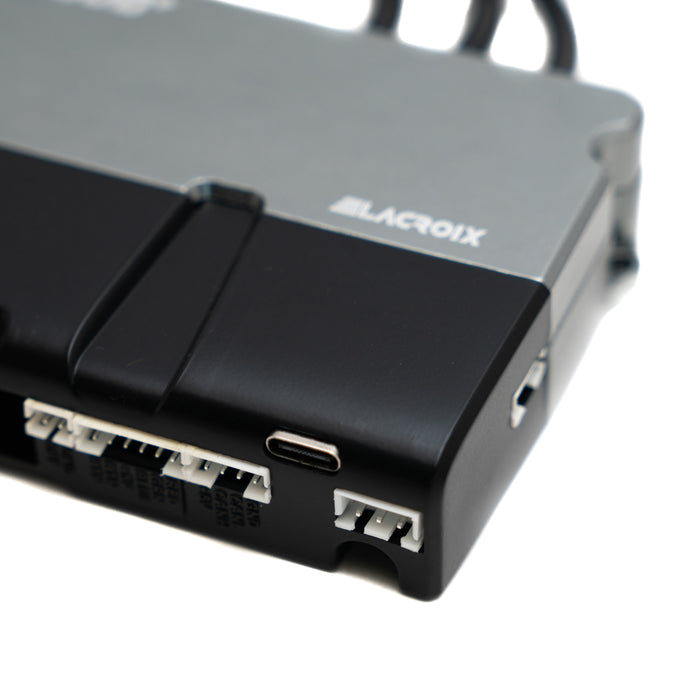

An XT90 port is cleverly nestled within the assembly to save precious space in the enclosure that would otherwise be needed for this high-power connector. The motor leads are 4mm Female Bullet Connectors. There are ports for hall sensors, motor temperature sensors, and communication busses for external devices. The JST PH 2mm connectors adhere to the standard outputs featured in most VESC based ESCs making it compatible with many external devices. It also features a USB C port for connecting and configuring via computer.



Software & Firmware

Stormcore comes with full support for the Lacroix Software Platform which includes apps for iOS and Web. See your stats, track rides, and adjust settings right in a thoughtfully crafted,  intuitive UI.

The firmware of the Stormcore is VESC™ based and is compatible with all third-party apps supporting the latest firmware, but we recommend using only the Stormcore app and the official VESC™ software hosted at https://www.vesc-project.com/
